brentford S240 2HE AI GPU Server
Artikelnummer: 240ab CHF 28’720.00

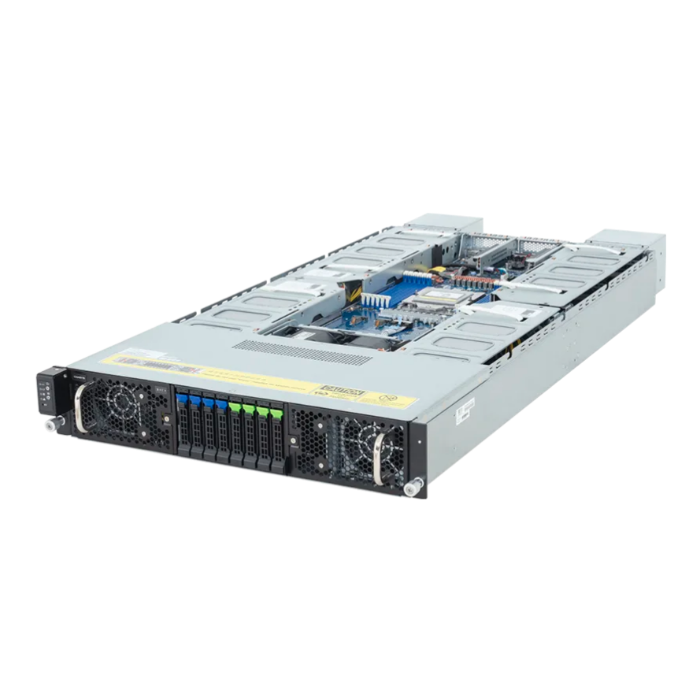

brentford S240 AI 2HE GPU Server
The brentford s240 AI 2HE GPU Server, based on the robust GIGABYTE G294-Z21 platform, is powered by a single high-performance AMD EPYC 9005 or 9004 Series processor. It is specifically designed to support up to four high-end PCIe Gen5 GPUs, making it the perfect foundation for the NVIDIA RTX PRO 6000 Blackwell Server Edition. To maintain optimal thermal performance within this dense 2U form factor, the system exclusively supports certified workstation and data center GPUs utilizing blower-style or passive cooling designs. Consumer graphics cards with axial fans are not supported due to structural and airflow constraints. The system utilizes an advanced 12-channel DDR5 architecture to deliver massive bandwidth and memory capacity at speeds up to 6400 MT/s. Engineered for maximum compute density and data throughput, the server integrates seamlessly with high-speed networking solutions to tackle the most demanding workloads.
Please note that due to the current supply chain situation for IT components, all listed prices are indicative. For a binding and customized quote, please contact us by phone or email!
To accommodate extensive local datasets, the system provides eight 2.5 inch front hot-swap drive bays, supporting a mix of ultra-fast Gen5 NVMe and SATA or SAS storage. With a massive 1+1 3000W redundant power supply design certified for 80 PLUS Titanium and eight heavy-duty 80mm system fans, this 2U rack server guarantees absolute stability even under continuous maximum load. Assembled and configured at the brentford facility in Steinhausen, this server is built for data center and enterprise AI environments—enabling secure local development, fine-tuning, and inference of large AI models entirely without cloud dependencies.
Specification:
2U Rackmount-Chassis with 2x 3000W Power Supplies 80 PLUS Titanium Redundant 1+1 and:
-
8x heavy-duty 80x80mm system fans for maximum thermal efficiency
-
8x 2.5 inch front hot-swap bays supporting 4x Gen5 NVMe and 4x SATA or SAS drives
Motherboard:
-
GIGABYTE G294-Z21 platform
-
1x AMD EPYC 9005 or 9004 Series Processor for Socket SP5
-
12-Channel DDR5 RDIMM up to 6400 MT/s
-
2x 10GBase-T 10GbE Ports
-
1x Dedicated Management LAN Port
GPU Support:
-
Up to 4x Dual-slot PCIe Gen5 GPUs
-
Optimized for 4x NVIDIA RTX PRO 6000 Blackwell Server Edition or passive data center accelerators
-
Strict requirement: Only blower-style or passive cooling designs are supported
PCI-E Slots:
-
4x PCI-E 5.0 x16 Full-Height Full-Length Slots dedicated for GPUs
-
2x PCI-E 5.0 x16 Low-Profile Slots dedicated for network adapters
Integrated I/O Front:
-
2x USB 3.2 Gen1 Type-A
-
Power button with LED
-
ID button with LED
-
System status LEDs
Management:
-
ASPEED AST2600 Baseboard Management Controller
-
GIGABYTE Management Console web interface
