brentford S246 4HE AI GPU Server
Artikelnummer: 246ab CHF 39’430.00

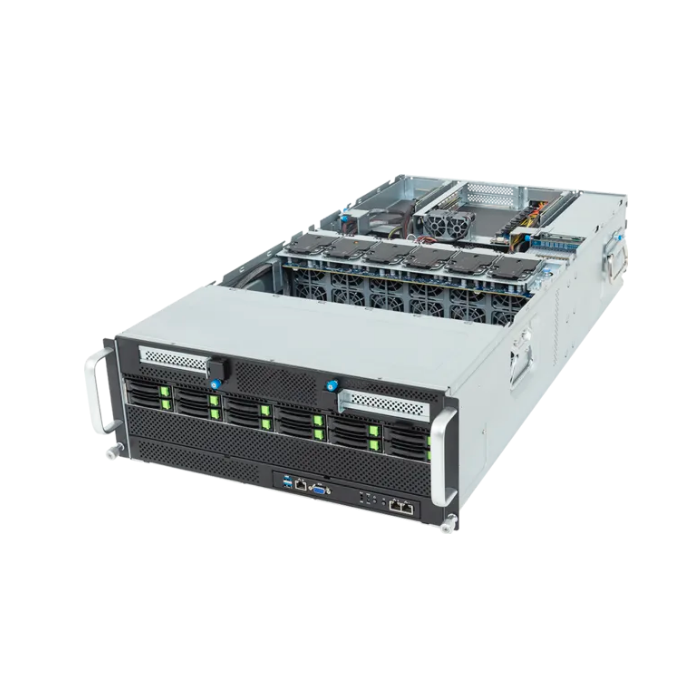

brentford S246 AI 4HE GPU Server
The brentford S246 AI 4HE GPU Server, based on the robust GIGABYTE G494-ZB4-AAP2 platform, is the ultimate standalone AI supercomputer. Powered by dual high-performance AMD EPYC 9005 or 9004 Series processors, it is specifically designed to support up to eight high-end PCIe Gen5 GPUs, making it the perfect foundation for the NVIDIA RTX PRO 6000 Blackwell Server Edition. Utilizing an advanced PCIe switch architecture, this system enables massive peer-to-peer data transfer directly between the GPUs. This bypasses the processors to prevent bottlenecks during large-scale AI training. To maintain optimal thermal performance within this dense 4U form factor, the system exclusively supports certified workstation and data center GPUs utilizing blower-style or passive cooling designs. Consumer graphics cards with axial fans are strictly not supported. Engineered for maximum compute density, this server is the logical next step for professional teams requiring massive processing power in a single, easy-to-deploy system.
Please note that due to the current supply chain situation for IT components, all listed prices are indicative. For a binding and customized quote, please contact us by phone or email!
To accommodate extensive local training datasets directly on the machine, the system provides twelve 2.5 inch front hot-swap drive bays, supporting a mix of ultra-fast Gen5 NVMe and SATA or SAS storage. With a massive 2+2 3000W redundant power supply design certified for 80 PLUS Titanium and a heavy-duty cooling array, this 4U rack server guarantees absolute stability even when all eight GPUs operate under continuous maximum load. Assembled and configured at the brentford facility in Steinhausen, this server is built for demanding enterprise AI environments—enabling secure local development, fine-tuning, and inference of massive AI models entirely without cloud dependencies or complex data center networking. This system includes a 24-month standard warranty. Additional service models are available upon request.
Specification:
4U Rackmount-Chassis with 4x 3000W Power Supplies 80 PLUS Titanium Redundant 2+2 and:
-
Heavy-duty system cooling array for maximum thermal efficiency
-
12x 2.5 inch front hot-swap bays supporting Gen5 NVMe and SATA or SAS drives
Motherboard:
-
GIGABYTE G494-ZB4-AAP2 platform featuring advanced PCIe Switch Architecture
-
2x AMD EPYC 9005 or 9004 Series Processors for Socket SP5
-
12-Channel DDR5 architecture per processor
-
24x DIMM slots supporting DDR5 RDIMM up to 6400 MT/s
-
2x 10GbE LAN Ports
-
1x Dedicated Management LAN Port
GPU Support:
-
Up to 8x Dual-slot PCIe Gen5 GPUs
-
Optimized for 8x NVIDIA RTX PRO 6000 Blackwell Server Edition or passive data center accelerators
-
Strict requirement: Only blower-style or passive cooling designs are supported
PCI-E Slots:
-
8x PCI-E 5.0 x16 Full-Height Full-Length Slots dedicated for GPUs
-
2x PCI-E 5.0 x16 Low-Profile Slots dedicated for network adapters
Integrated I/O Front:
-
2x USB 3.2 Gen1 Type-A
-
Power button with LED
-
ID button with LED
-
System status LEDs
Management:
-
ASPEED AST2600 Baseboard Management Controller
-
GIGABYTE Management Console web interface
-
Individuelle Konfiguration
Betriebsbereite Installation -
3 Jahre Garantie
Lebenslanger Hardware Support - Support Hotline zum Ortstarif
-
- CH Herstellung & Support
